Ø600 GRP Manhole — HingedRequest Technical DrawingFull technical drawings are supplied by ION on request. This preview is not for production use.
GRP Manhole
Ø600 GRP Manhole — Hinged

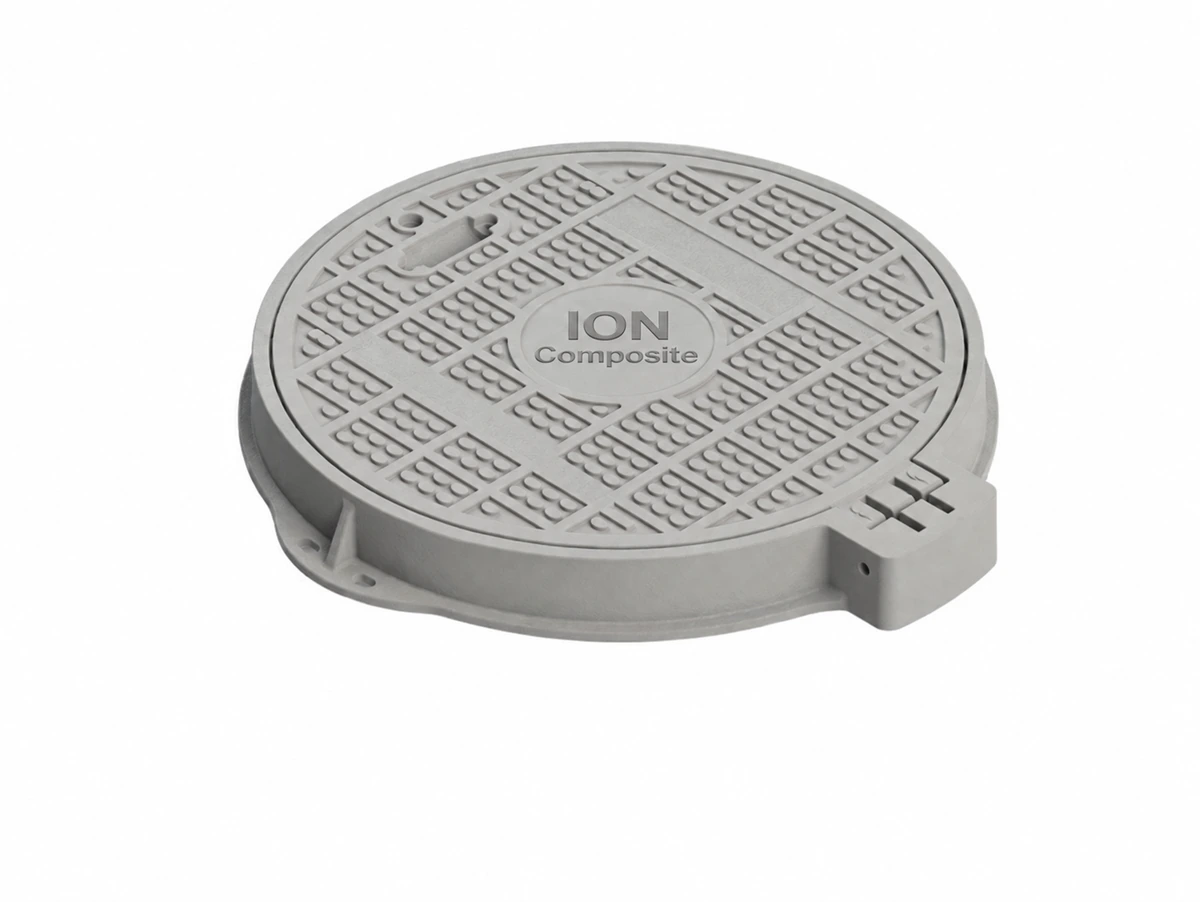

Round GRP manhole cover and frame with hinge. C250 and D400 options are specified by the owner.
GRPNominal: 600 mmOptions: C250 / D400
Request a quote for this model
Model data
Technical dimensions.
Nominal designations and source dimension labels are shown separately. All dimensions below retain the supplied values and tolerances.
| Material family | GRP |
|---|---|
| Product configuration | Hinged |
| A · top-view source label | 831 mm |
| B · top-view source label | 695 mm |
| Labelled diameter | 600 mm |
| H · profile label | 97 mm |
| H1 · lower profile label | 52 mm |
| Owner-specified load-class options | C250 / D400 |
| Engineering approval | Pending — not approved for production |
Engineering review notes
C250 / D400 are owner-specified product options, not independently verified certification.
The 600 mm diameter label is not independently verified as the clear opening. Mass and tolerances were not supplied.
GRP identifies the product family. Detailed resin specification and independent certification have not been verified.
ION technical drawings
Small drawing previews.

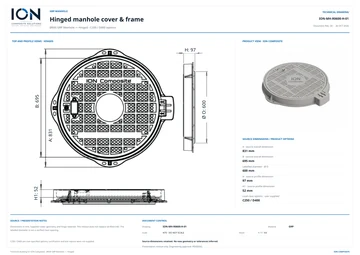

Low-resolution previews for reference only. Read the dimensions in the table above and request the complete technical drawing from ION.
