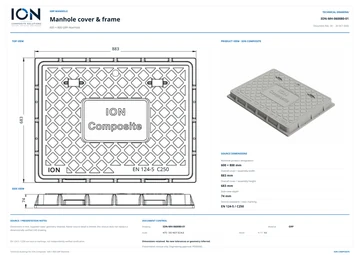

600 × 800 GRP ManholeRequest Technical DrawingFull technical drawings are supplied by ION on request. This preview is not for production use.
GRP Manhole
600 × 800 GRP Manhole
Rectangular GRP manhole cover and frame.
GRPNominal: 600 × 800 mm
Request a quote for this model
Model data
Technical dimensions.
Nominal designations and source dimension labels are shown separately. All dimensions below retain the supplied values and tolerances.
| Material family | GRP |
|---|---|
| Nominal designation | 600 × 800 mm |
| Cover / assembly overall | 883 × 683 mm |
| Cover / assembly side height | 74 mm |
| Frame overall | 880 × 680 mm |
| Additional frame rectangle | 804 × 604 mm |
| Labelled internal opening | 694 × 494 mm |
| Frame offset labels | 16.4 / 16.4 mm |
| Frame side heights | 74 / 54 mm |
| Load classification | Unconfirmed — review the source markings and engineering notes |
| Engineering approval | Pending — not approved for production |
Engineering review notes
The nominal designation is not the labelled 694 × 494 mm opening. Cover/assembly and frame overall dimensions belong to separate source drawings and are retained without reconciliation.
EN 124-5 / C250 are source markings only; certification evidence and mass have not been supplied.
GRP identifies the product family. Detailed resin specification and independent certification have not been verified.
ION technical drawings
Small drawing previews.
Low-resolution previews for reference only. Read the dimensions in the table above and request the complete technical drawing from ION.

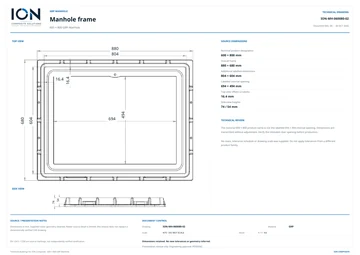

Frame Drawing
