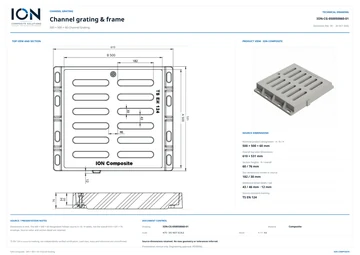

Technical Drawing
500 × 500 × 60 Channel GratingRequest Technical DrawingFull technical drawings are supplied by ION on request. This preview is not for production use.
GRP Drain Grating
500 × 500 × 60 Channel Grating
Square channel grating and frame with two banks of six rounded openings.
GRPNominal: 500 × 500 × 60 mm
Request a quote for this model
Model data
Technical dimensions.
Nominal designations and source dimension labels are shown separately. All dimensions below retain the supplied values and tolerances.
| Material family | GRP |
|---|---|
| Nominal designation · A / B / H | 500 × 500 × 60 mm |
| Overall top-view dimensions | 610 × 531 mm |
| Overall section depth | 76 mm |
| Source slot labels | 182 / 30 mm |
| Additional detail labels | 43 / 46 mm |
| Tab label | 12 mm |
| Load classification | Unconfirmed — review the source markings and engineering notes |
| Engineering approval | Pending — not approved for production |
Engineering review notes
Nominal dimensions and the 610 × 531 × 76 mm overall envelope refer to different features.
TS EN 124 is an unverified source reference; load class, mass and tolerances are unconfirmed.
GRP identifies the product family. Detailed resin specification and independent certification have not been verified.
ION technical drawings
Small drawing previews.
Low-resolution previews for reference only. Read the dimensions in the table above and request the complete technical drawing from ION.
