320 × 500 × 40 Drain GratingRequest Technical DrawingFull technical drawings are supplied by ION on request. This preview is not for production use.
GRP Drain Grating
320 × 500 × 40 Drain Grating
Rectangular drain grating with twenty openings in two rows, four corner fixing holes and an end tab.
GRPNominal: 320 × 500 × 40 mm
Request a quote for this model
Model data
Technical dimensions.
Nominal designations and source dimension labels are shown separately. All dimensions below retain the supplied values and tolerances.
| Material family | GRP |
|---|---|
| Nominal designation | 320 × 500 × 40 mm |
| A / B · source labels | 320,07 / 500 mm |
| Upper chain · first values | 412 / 320,44 / 228,89 mm |
| Upper chain · remaining values | 137,33 / 45,78 mm |
| Lower top view / tab / vertical label | 420 / 20 / 160,03 mm |
| Section length labels | 512,03 / 498,07 mm |
| Section · H / additional detail | 40 / 30 mm |
| Other section detail labels | 13,6 / 14,06 / 19,05 / 22,23 / 24,5 / 15,5 mm |
| Load classification | Unconfirmed — review the source markings and engineering notes |
| Engineering approval | Pending — not approved for production |
Engineering review notes
Nominal 320 and source A320,07 remain distinct. Section labels 512,03 / 498,07 remain distinct from nominal 500.
EN 124-5 / B125 and the emblem are unverified source markings. Mass and tolerances were not supplied.
GRP identifies the product family. Detailed resin specification and independent certification have not been verified.

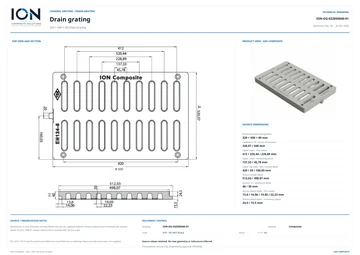

ION technical drawings
Small drawing previews.
Low-resolution previews for reference only. Read the dimensions in the table above and request the complete technical drawing from ION.
